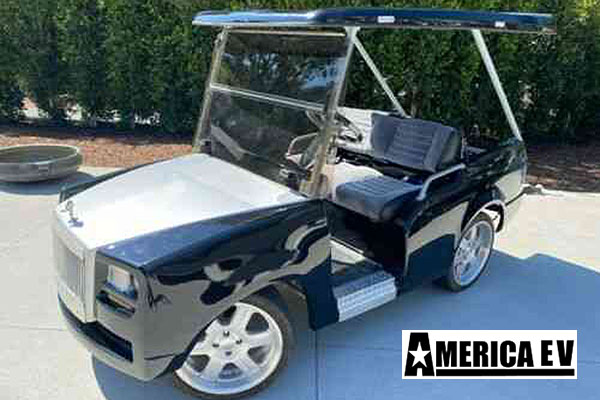

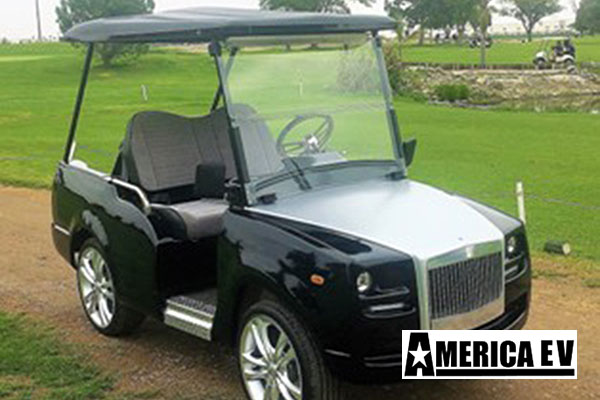

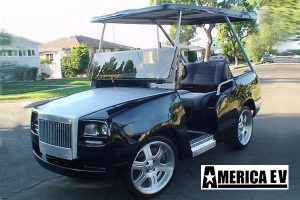

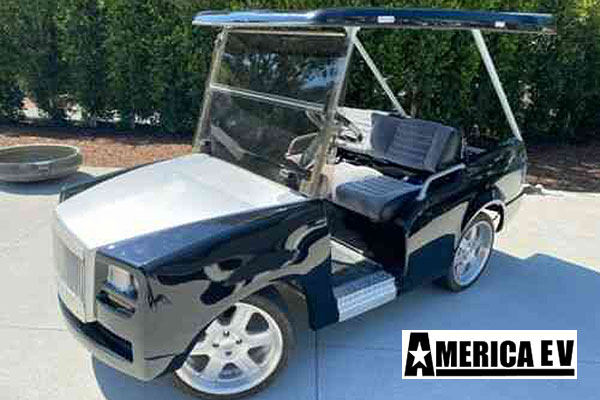

Excalibur

Luxury Custom Electric Vehicle that is reasonably priced

ACG Inc ., the recognized leader in affordable Custom Electric Vehicles, is pleased to introduce the all-new Excalibur.

Whether you are going to the golf course, the market, or simply out to enjoy a beautiful day, the Excalibur is your elegant choice for affordable luxury.

ACG, Inc. has revolutionized the Electric Vehicle Industry by re-inventing the increasingly popular Golf and Community Car platform from the ground up.

The Excalibur was built with purpose and reliability in mind.

Our dual purpose platform allows you to transform your Excalibur from a community vehicle to being the envy of everyone on the golf course with an easy to use hand- release golf bag attachment.

Elegant Excalibur Design

The quality of the Excalibur begins in the engineering of the car from the ground up.

The Excalibur is built using completely new parts.

The frames are made from rugged and corrosion-proof all aluminum I-beams.

The Excalibur uses a long lasting 48-volt system to ensure maximum range using industry leading Traction batteries managed by the SEVCON computerized controller.

The Hi-output 17.5 peak horsepower AC motor is powerful enough to move you and your passengers up hill and yet it is efficient enough to deliver a higher range than the industry average.

The Excalibur also features an on-board 12-volt converter that gives you an in-dash power source to power you cell phone or laptop computer.

For added safety, the Excalibur has been outfitted with standard headlights, brake lights, turn signals, horn and is the only golf cart to feature a standard 4-wheel braking system, which includes the use of front wheel hydraulic disk brakes.

With all of the standard features that have been engineered into the Excalibur, ACG, Inc. has reset the bar in the Custom Electric Vehicle industry to a level that has never before been seen and that other companies can only hope to come close to.

All current model ACG cars are covered by an exclusive 48- month/unlimited mileage 4 year Powertrain Warranty*- the longest available in the industry!
(* see Warranty Manual for details)

Uncompromising Luxury

With fine standard appointments such as a simulated Burl wood accented interior, the Excalibur Golf/Estate Vehicle from ACG, Inc. is designed and to be the finest golf car available on the market.

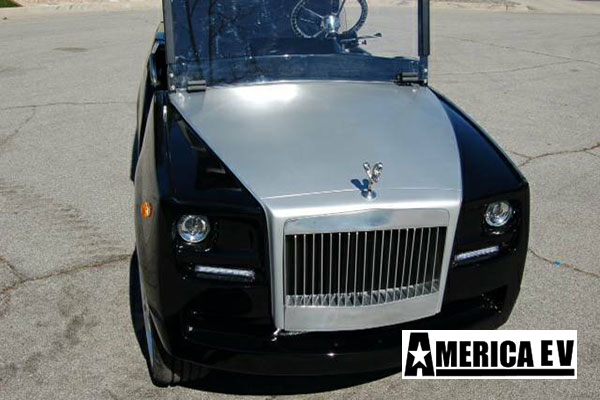

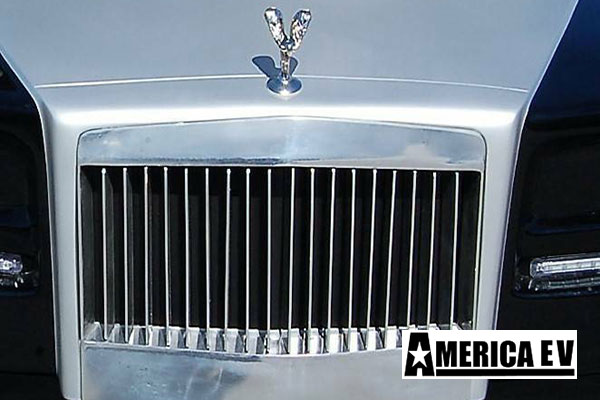

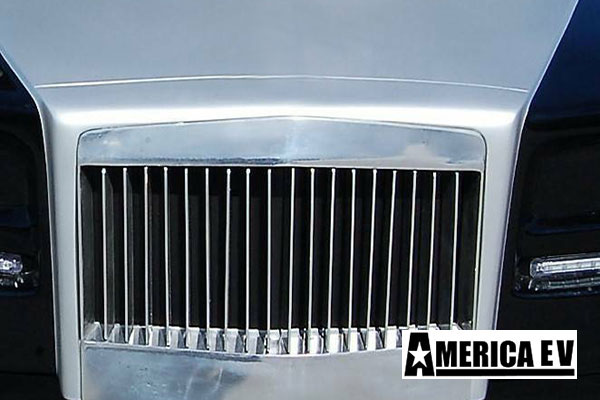

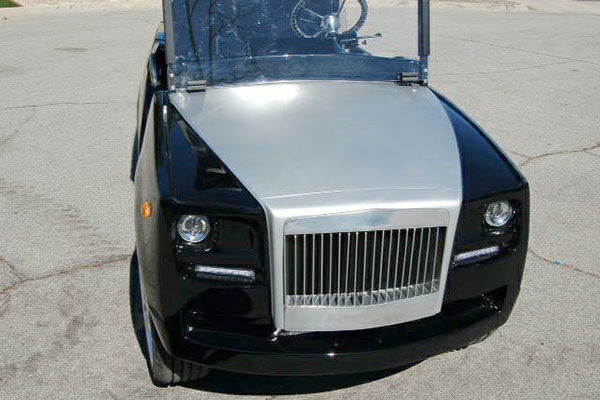

Other standard features include a color matched grill, locking simulated burl wood glove box, and chrome 16″ wheels.

From project inception to development, ACG, Inc. has worked closely with Excalibur to construct the car with the meticulous detail that the Excalibur Golf/Estate Vehicle commands and deserves.

Available as a standard 4 seat model or an extended 6 seat limo model, the Excalibur can only be built by American Custom Golf Cars, Inc.

Standard Colors

  • burgundy
  • white
  • silver
  • black

Standard Equipment

-4 or 6 Passenger Seating
-Powerful AC 17.5hp Drive Motor
-SEVCON 3″ LCD Display Screen
-On Board Delta-Q Charger
-Automotive style Master ON/OFF Key
-Street Use Ready LSV
-Self Diagnostic On Screen Capability
-2 Locking Glove Boxes
-2 Cup Holders
-Adjustable Side Mirrors – Left and Right
-Center rear view mirror
-R-Flex Plastic Body
-Tubular Suspension
-Independent Front Suspension
-Hard Top

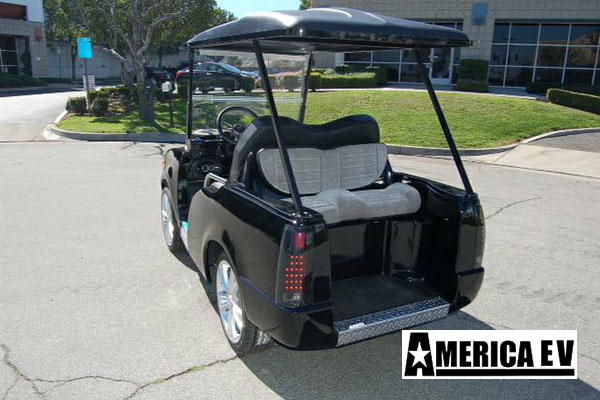

-Flip Back Rear Cargo Seat
-3 Point Seat Belts certified to FMVSS #209
-4 Wheel Brakes
-Color Matched Roof
-Headlights
-Rear fender protectors
-Bag-well liner or Bag holder
-Dual Tail lights with LED Brake Lights
-High mounted Third Brake light for Safety
-Windshield Wiper
-Front and Rear Side Reflectors
-Horn
-Front and Rear Turn Signals
-Chrome Aluminium Rims

Custom Paint

The Excalibur is also available with customized paint and graphic schemes to promote your company or just add that special personal touch to your vehicle for an additional cost

Specifications

Overall Length138 Inches3276 mm
Overall Width42.5 Inches1079.5 mm
Height to top of Windshield71 Inches1803.4 mm
Wheelbase65.5 Inches1663.7 mm
Ground Clearance5 Inches127 mm
Weight
(standard vehicle no batteries)
738 lb.333.4 Kg
Weight
(Curb, with Batteries)
1,180 lb.535.2 Kg
Weight
(GVWR)
2,000 lb.907 Kg
Wheels
Front
17”x7”
Wheels
Rear
17”x7”
Tire Size
Front
215/35 R17
Tire Size
Rear
215/35 R17
Brakes
Front
Hydraulic Disk
Brakes
Rear
7” Mechanical
Drum Type
Drive MotorDirect Drive
48 Volts
3-phase AC, 17.5 hp
TransaxleDouble Reduction
high speed gears
Electrical System48 volts DC
BatteriesSix (6) @ 8V each
in series = 48V DC
Battery ChargerOn BoardDelta-Q
Speed ControllerSEVCON Gen4
450 Amp Continuous
SteeringRack and Pinion
ChassisAluminum I-Beam
BodyOne-piece
Fiberglass Composite
Body FinishAutomotive Paint
Interior MaterialMarine-type Vinyl
CarpetMarine-type Synthetic
Forward Speed<25 MPH (eGC)
Braking Distance
(from 12 mph)
<8 feet
Standard Seating Capacity4 (eGC)

Options to Enhance your driving experience…

The Excalibur is available with a multitude of options to increase your driving comfort and pleasure.

  • Sony Xplod AM/FM CD player with Speakers
  • Security System
  • Sony Xplode AM/FM CD Player with Speakers
  • Removable Dual Golf Bag Holder Attachment
  • Golf Ball Washer
  • Sand and Seed Dispenser
  • Beverage Cooler
  • Storage Basket
  • Car Cover
  • COLORS
