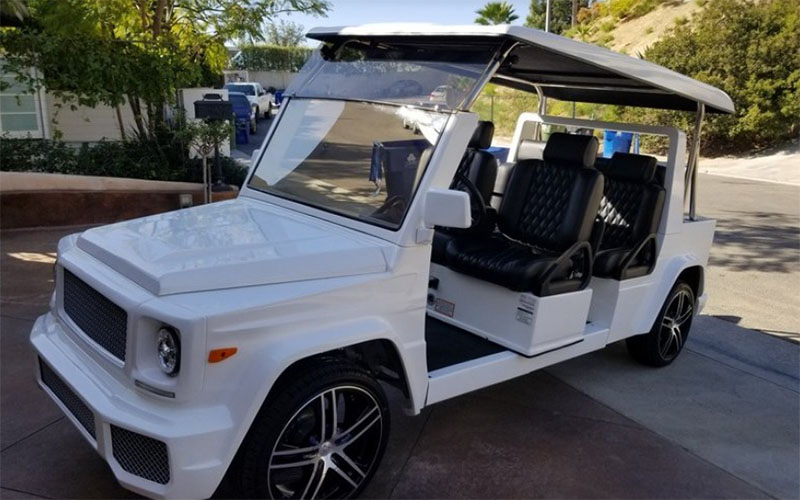

E Wagon Limo Golf Car | Ev Wagon LSV Limo | Ev Wagon Limo Rental

A Newly Re Designed Ev Wagon That is Reasonably Priced

America EV The recognized leader in affordable Custom Electric Vehicles, is pleased to introduce the all-new Ev Wagon Limo Golf Car.

 The EV Wagon Limo golf cart has a top speed of 24 miles per hour, the Ev Wagon golf cart is the perfect Electric Vehicle to get you where you need to be.

The Ev Wagon Limo Golf Car can be licensed for Street Use in most States ( Each state has it’s own laws – Customer is responsible to obtain information and order accordingly. Prime Golf Cars assumes no liability. )

Whether you are going to the golf course, the market, or simply out to enjoy a beautiful day, the E Wagon Limo Golf Car is your elegant choice.

America EV has revolutionized the Electric Vehicle Industry by reinventing the increasingly popular Golf and Community Car platform from the ground up.

The Ev Wagon Limo Golf Car was built with purpose and reliability in mind.

Our dual purpose platform allows you to transform your E Wagon Limo from a community vehicle to being the envy of everyone on the golf course with an easy to use hand- release golf bag attachment.

Unmatched Engineering

The quality of the Ev Wagon Limo begins in the engineering of the car from the ground up.

The EV Wagon Limo is built using completely new parts.

The frames are made from rugged and corrosion-proof all aluminum I-beams.

The Ev Wagon Limo uses a long lasting 48-volt battery system to ensure maximum range using industry leading Trojan batteries managed by the SEVCON computerized controller.

The Hi-output 4.5 kW AC motor is powerful enough to move you and your passengers at speeds up to 25 miles per hour and yet it is efficient enough to deliver a higher range than the industry average.

The Ev Wagon Limo also features an on-board 12-volt converter that gives you an in-dash power source to power your under glow lights, cell phone or laptop computer.

For added safety, the Ev Wagon Limo has been outfitted with standard headlights, brake lights, turn signals, horn and is the only golf cart to feature a standard 4-wheel braking system, which includes the use of front wheel hydraulic disk brakes.

With all of the standard features that have been engineered into the Ev Wagon Limo, America EV has reset the bar in the Custom Electric Vehicle industry to a level that has never before been seen and that other companies can only hope to come close to.

The Ev Wagon Limo can be licensed for Street Use in most States.

e wagon limo lsv golf car, e wagon limo, e wagon limo rental

“It is the responsibility of the purchaser to know their local laws and regulations regarding golf carts and LSVs and purchase accordingly. Prime Golf Cars is not liable.”

All new America EV low speed vehicles are now covered by exclusive 12-month / unlimited mileage Powertrain Warranty.



Standard colors:

  • Burgundy
  • Black
  • Silver
  • White

Custom Paint

The Ev Wagon Limo Golf Car is also available with customized paint and graphic schemes to promote your company or just add that special personal touch to your vehicle for an additional cost

Standard Equipment

  • 6 or 8 Passenger Seating
  • Powerful AC 4.5 kW Drive Motor
  • SEVCON 3″ LCD Display Screen
  • On Board Delta-Q Charger
  • Automotive style Master ON/OFF Key
  • Self Diagnostic On Screen Capability
  • 2 Locking Glove Boxes
  • 2 Cup Holders
  • Adjustable Side Mirrors – Left and Right
  • Center rear view mirror
  • R-Flex Plastic Body
  • Tubular Suspension
  • Independent Front Suspension
  • Rear Seat
  • 2 Point Seat Belts certified to FMVSS #209
  • 4 Wheel Brakes
  • Headlights
  • Dual Tail lights with LED Brake Lights
  • Horn
  • Front and Rear Turn Signals
  • 17″ Aluminum Wheels
  • Triple Leaf Springs



Specifications

Overall Length 158 Inches 4013 mm
Overall Width 63 Inches 1295 mm
Height to top of Windshield 59 Inches 1397 mm
Wheelbase 78 Inches 1982 mm
Ground Clearance 7.2 Inches 183 mm
Weight
(standard vehicle no batteries)
855 lb. 493 Kg
Weight
(Curb, with Batteries)
1,280 lb. 640 Kg
Weight
(GVWR)
2,000 lb. 1132 Kg
Wheels
Front
17”x7.5”
Wheels
Rear
17”x7.5”
Tire Size
Front
205/55 R17
Tire Size
Rear
205/55 R17
Brakes
Front
Hydraulic Disk
Brakes
Rear
7” Mechanical
Drum Type
Drive Motor Direct Drive
48 Volts
3-phase AC, 17.5 hp
Transaxle Double Reduction
high speed gears
Electrical System 48 volts DC
Batteries Six (6) @ 8V each
in series = 48V DC
Battery Charger On Board Delta-Q
Speed Controller SEVCON Gen4
400 Amp Continuous
Steering Rack and Pinion
Chassis Aluminum I-Beam
Body One-piece
Fiberglass Composite
Body Finish Automotive Paint
Interior Material Marine-type Vinyl
Carpet Marine-type Synthetic
Forward Speed <25 MPH (eGC)
Braking Distance
(from 20 mph)
<20 feet
Standard Seating Capacity 4 (eGC)

Options to Enhance your driving experience…

The Ev Wagon Limo is available with a multitude of options to increase your driving comfort and pleasure.

Here is a short List of currently available Options:

  • LSV Certification
  • AM/FM Bluetooth with Speakers
  • Security System
  • Removable Dual Golf Bag Holder Attachment
  • Golf Ball Washer
  • Sand and Seed Dispenser
  • Beverage Cooler
  • Storage Basket
  • Car Cover
  • Colors
