Ev Wagon Golf Car | E Wagon Golf Cart | America EV Golf Cart

Neighborhood Electric Vehicle that is reasonably priced

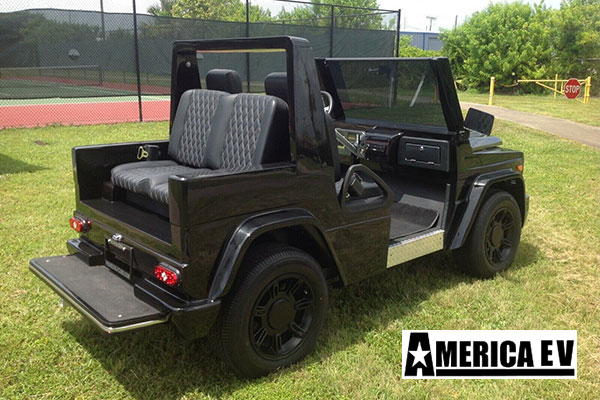

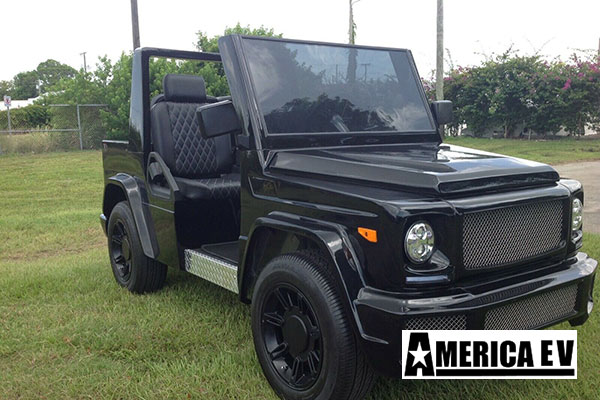

America EV, the recognized leader in affordable Custom Electric Vehicles, is pleased to introduce the all-new Ev Wagon Golf Car.

Certified with a top speed of 24 miles per hour, the Ev Wagon Golf Car is the perfect Electric cart to get you where you need to be.

The Ev Wagon can be licensed for Street Use in most States.





“It is the responsibility of the purchaser to know their local laws and regulations regarding golf carts and LSVs and purchase accordingly. Prime Golf Cars is not liable.”

Whether you are going to the golf course, the market, or simply out to enjoy a beautiful day, the Ev Wagon is your elegant choice.

America EV  has revolutionized the Electric Vehicle Industry by reinventing the increasingly popular Golf and Community Car platform from the ground up.

The Ev Wagon Golf Car was built with purpose and reliability in mind.

Our dual purpose platform allows you to transform your E Wagon from a community vehicle to being the envy of everyone on the golf course with an easy to use hand- release golf bag attachment.

Unmatched Engineering

The quality of the Ev Wagon begins in the engineering of the car from the ground up.

The Ev Wagon is built using completely new parts.

The frames are made from rugged and corrosion-proof all aluminum I-beams.

The E Wagon uses a long lasting 48-volt system to ensure maximum range using industry leading Traction batteries managed by the SEVCON computerized controller.

The Hi-output 4.5 kW AC motor is powerful enough to move you and your passengers at speeds up to 24 miles per hour and yet it is efficient enough to deliver a higher range than the industry average.

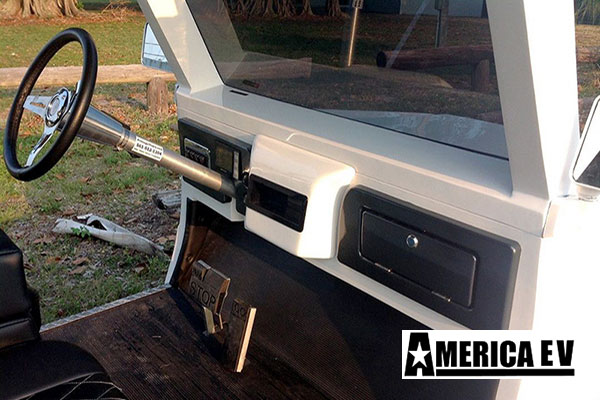

The Ev Wagon also features an on-board 12-volt converter that gives you an in-dash power source to power you cell phone or laptop computer.

For added safety, the Ev Wagon has been outfitted with standard headlights, brake lights, turn signals, horn and is the only golf cart to feature a standard 4-wheel braking system, which includes the use of front wheel hydraulic disk brakes.

With all of the standard features that have been engineered into the E Wagon, America EV has reset the bar in the Custom Electric Vehicle industry to a level that has never before been seen and that other companies can only hope to come close to.

Standard colors:

  • Burgundy
  • Black
  • Silver
  • White

Custom Paint

The Ev Wagon Golf Car is also available with customized paint and graphic schemes to promote your company or just add that special personal touch to your vehicle for an additional cost

Standard Equipment

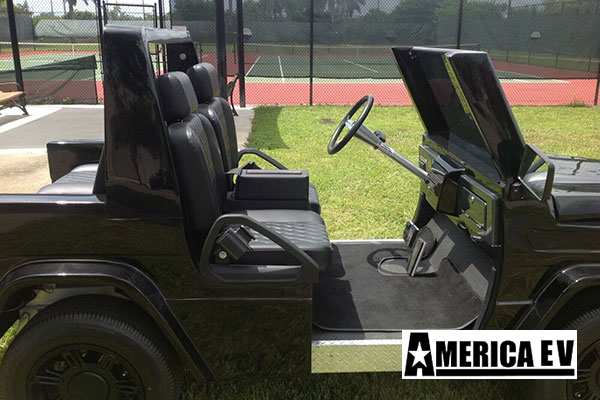

  • 4 Passenger Seating
  • Powerful AC 4.5 kW Drive Motor
  • SEVCON 3″ LCD Display Screen
  • On Board Delta-Q Charger
  • Automotive style Master ON/OFF Key
  • Self Diagnostic On Screen Capability
  • 2 Locking Glove Boxes
  • 2 Cup Holders
  • Adjustable Side Mirrors – Left and Right
  • Center rear view mirror
  • R-Flex Plastic Body
  • Tubular Suspension
  • Independent Front Suspension

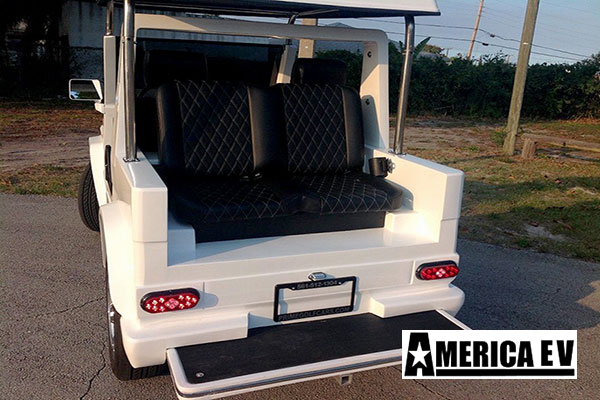

  • Rear Seat
  • 2 Point Seat Belts certified to FMVSS #209
  • 4 Wheel Brakes
  • Headlights
  • Dual Tail lights with LED Brake Lights
  • Horn
  • Front and Rear Turn Signals
  • 17″ Aluminum Wheels
  • Triple Leaf Springs



Specifications

Overall Length 129 Inches 3276 mm
Overall Width 63 Inches 1600.2 mm
Height to top of Windshield 59 Inches 1498.6 mm
Wheelbase 78 Inches 1982.2 mm
Ground Clearance 7.2 Inches 182.88 mm
Weight
(standard vehicle no batteries)
855 lb. 387.8 Kg
Weight
(Curb, with Batteries)
1,280 lb. 5850.6 Kg
Weight
(GVWR)
2,000 lb. 907 Kg
Wheels
Front
17”x7.5”
Wheels
Rear
17”x7.5”
Tire Size
Front
205/55 R17
Tire Size
Rear
205/55 R17
Brakes
Front
Hydraulic Disk
Brakes
Rear
7” Mechanical
Drum Type
Drive Motor Direct Drive
48 Volts
3-phase AC, 17.5 hp
Transaxle Double Reduction
high speed gears
Electrical System 48 volts DC
Batteries Six (6) @ 8V each
in series = 48V DC
Battery Charger On Board Delta-Q
Speed Controller SEVCON Gen4
400 Amp Continuous
Steering Rack and Pinion
Chassis Aluminum I-Beam
Body One-piece
Fiberglass Composite
Body Finish Automotive Paint
Interior Material Marine-type Vinyl
Carpet Marine-type Synthetic
Forward Speed <25 MPH (eGC)
Braking Distance
(from 20 mph)
<20 feet
Standard Seating Capacity 4 (eGC)

Options to Enhance your driving experience…

The E Wagon is available with a multitude of options to increase your driving comfort and pleasure.

Here is a short List of currently available Options:

  • LSV Certification
  • AM/FM Bluetooth with Speakers
  • Security System
  • Removable Dual Golf Bag Holder Attachment
  • Golf Ball Washer
  • Sand and Seed Dispenser
  • Beverage Cooler
  • Storage Basket
  • Car Cover
  • Colors

Find more information at America EV
