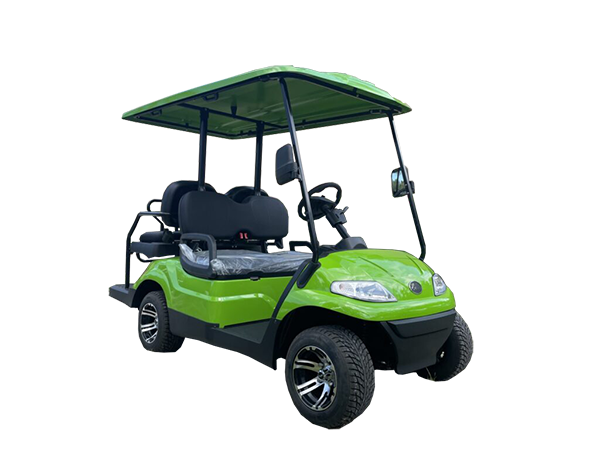

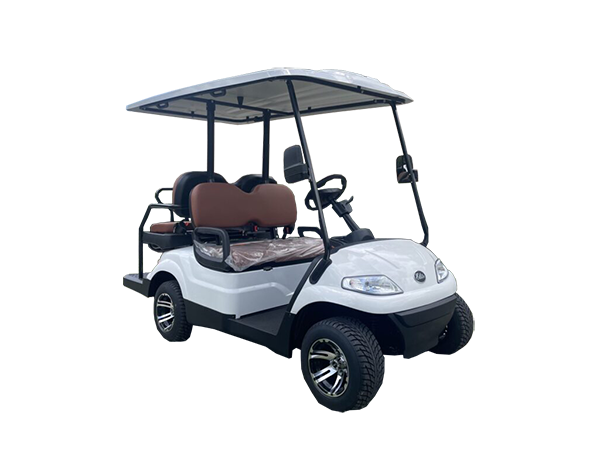

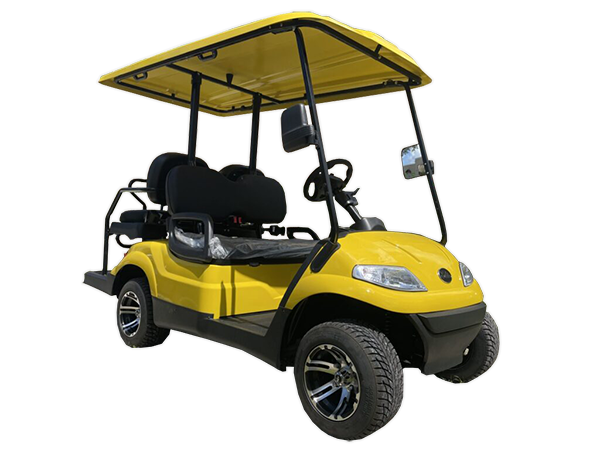

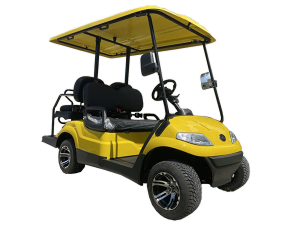

Elite EV 2+2 Lifted Golf Cart | Elite EV 4 Passenger Lifted Golf Cart

The Elite EV 2+2 lifted golf cart retains the classic body style of a 4 passenger lifted golf cart – with 2 seats facing forward and 2 seats facing backward – while keeping up-to-date with the newest golf cart technology. The lifted carts are higher than the standard ones, and have rugged, bumpy wheels for use on any terrain, including rough, rocky areas. As a street legal vehicle, it includes all safety features – headlights, taillights, brake lights, turn signals, horn -, and is allowed on public roads with a posted speed limit of 35mph or less. Elite EV golf carts come in a range of colors and also features 12 inch alloy rims, functional front and rear bumpers, digital gauges, and more.

POWER

Motor: 48 Volt AC 4kw

Battery: Trojan Lead Acid, NexGen AGM, or NexGen Advanced Lithium

Charger: On Board

Transaxle: 10.25: 1 High Speed Rear Axle – continuously variable

Controller: Toyota© 350 AH PERFORMANCE

PERFORMANCE

Forward Speed: Up to 28 M.P.H.

Braking Distance: Approx. 7 feet

Turning Radius: Approx. 10 feet

Climbing: Safe Climb 25% grade / Max Climb 35% grade

Maximum distance per full charge: Approx. 30-50 miles

STRUCTURE

Chassis: A-Frame powder coated Steel. Four Wheel Coil Over Shock Suspension, Four Wheel Hydraulic Disc Brakes.

Top Support: Galvanized Steel. Anti-Corrosive Dip w/ Powder Coat

Body: PP Material

Cart Dimensions: 9′ x 4′ x 6.5′

Ground Clearance: 7 Inches

Net Weight: 639 Lbs.

ACCESSORIES

Lights: Head, Tail, Brake, and Turn Signals

Wheels: 12 inch alloy rims

Other: Charge Indicator, Horn, Digital Speedometer, Gauges, Side Mirrors, Seat Belts

Optional: A full line of Accessory Upgrades and Parts
